Wall Mounted Timer/Pump for Misting Cube

Automated Chemical Dispensing That Works While You Don't

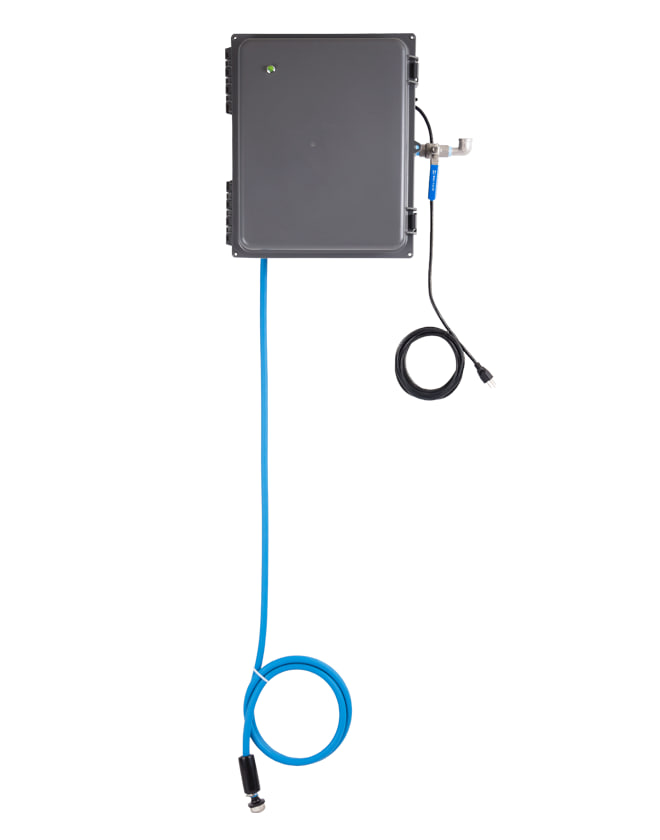

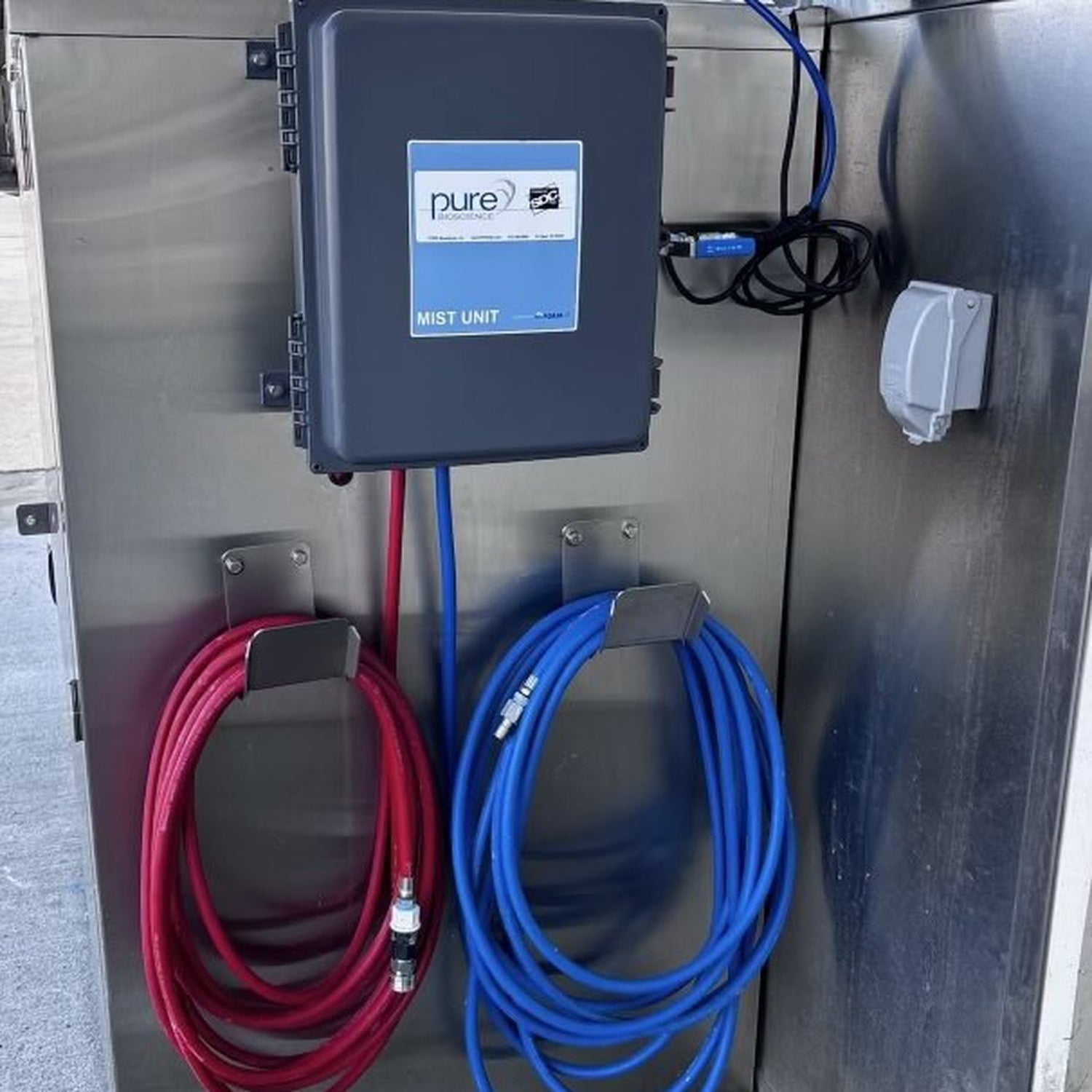

The M2642 is your all-in-one, wall-mounted control box that automates chemical misting with precision and power. Paired with the Misting Cube M2771, this system delivers a fine, controlled droplet that activates with the push of a button and stops when the job is done.

What it does:

• Pulls from a premixed solution - drop the suction line in your drum and go
• Automates misting cycles with a programmable timer
• Delivers fine 15-micron droplets for effective coverage without soaking

Why it works:

• Supports up to 20 nozzles
• Powered by compresses air
• Smart timer control guarantees consistent and repeatable results

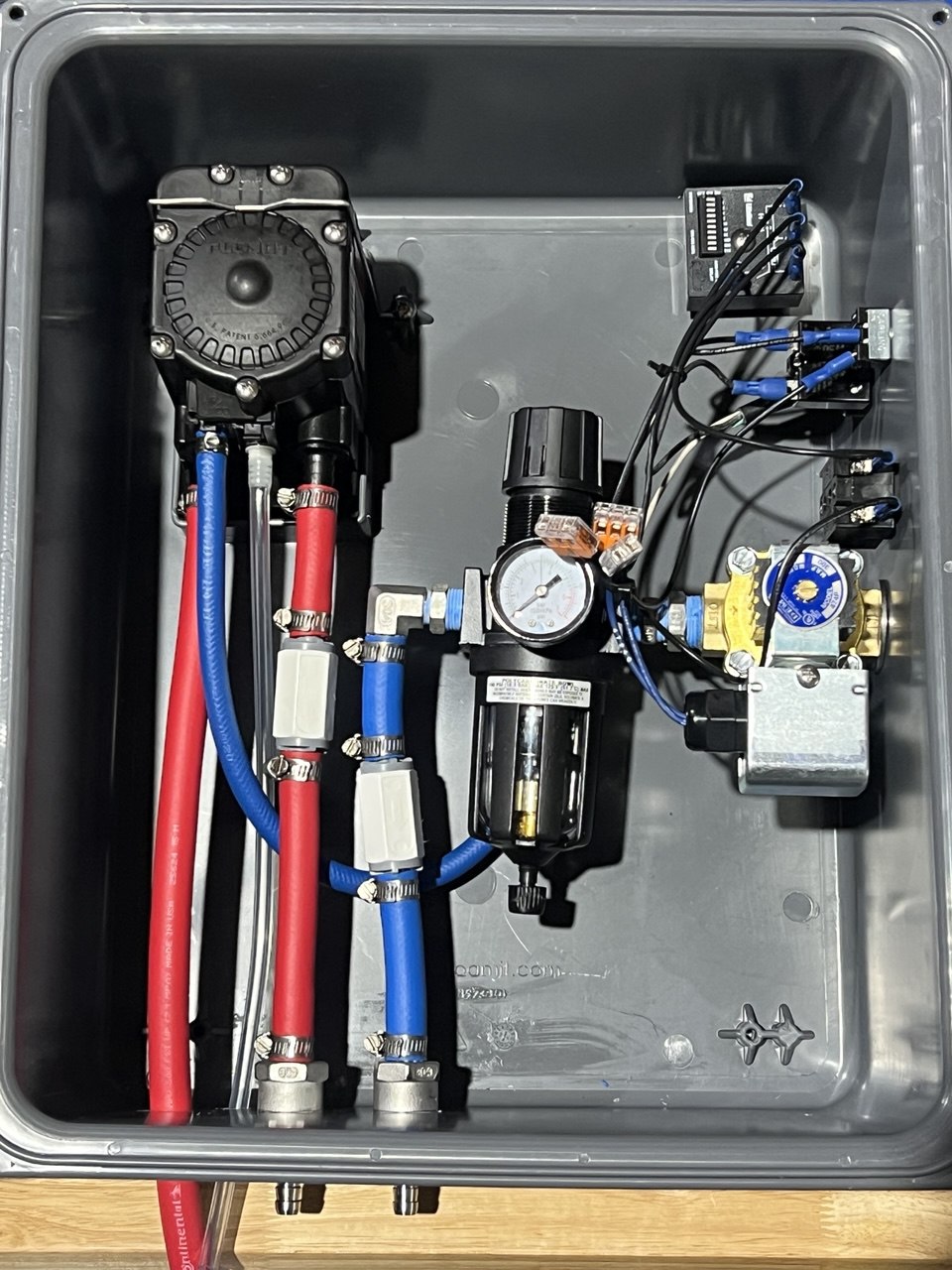

• Quick-change pump - swap it out without tools
• Built to last with industrial-grade components

Works best with:

• Misting Cube M2771 - for fast, high-output chemical misting
• PURE® Hard Surface Disinfectant (55-gallon drums) – EPA Registered, no-rinse sanitation

Ideal for:

• Transportation fleets & transit terminals
• Food & beverage processing
• Warehouse & manufacturing plants
• Institutional cleaning & agriculture

Specs:

• 15"x16"x9"
• 13 lbs.
• 2 x 50' air and chemistry hose with stainless disconnects
• Wall mounting hardware
• Hose mounting brackets
• Power: 120V, 60Hz, 2 amps
• Air: Max 150 PSI input, 2.5 CFM per nozzle
• Tubing: 3/8" OD
• Temperature Range: 40-100°
